Fuel Less Automobile

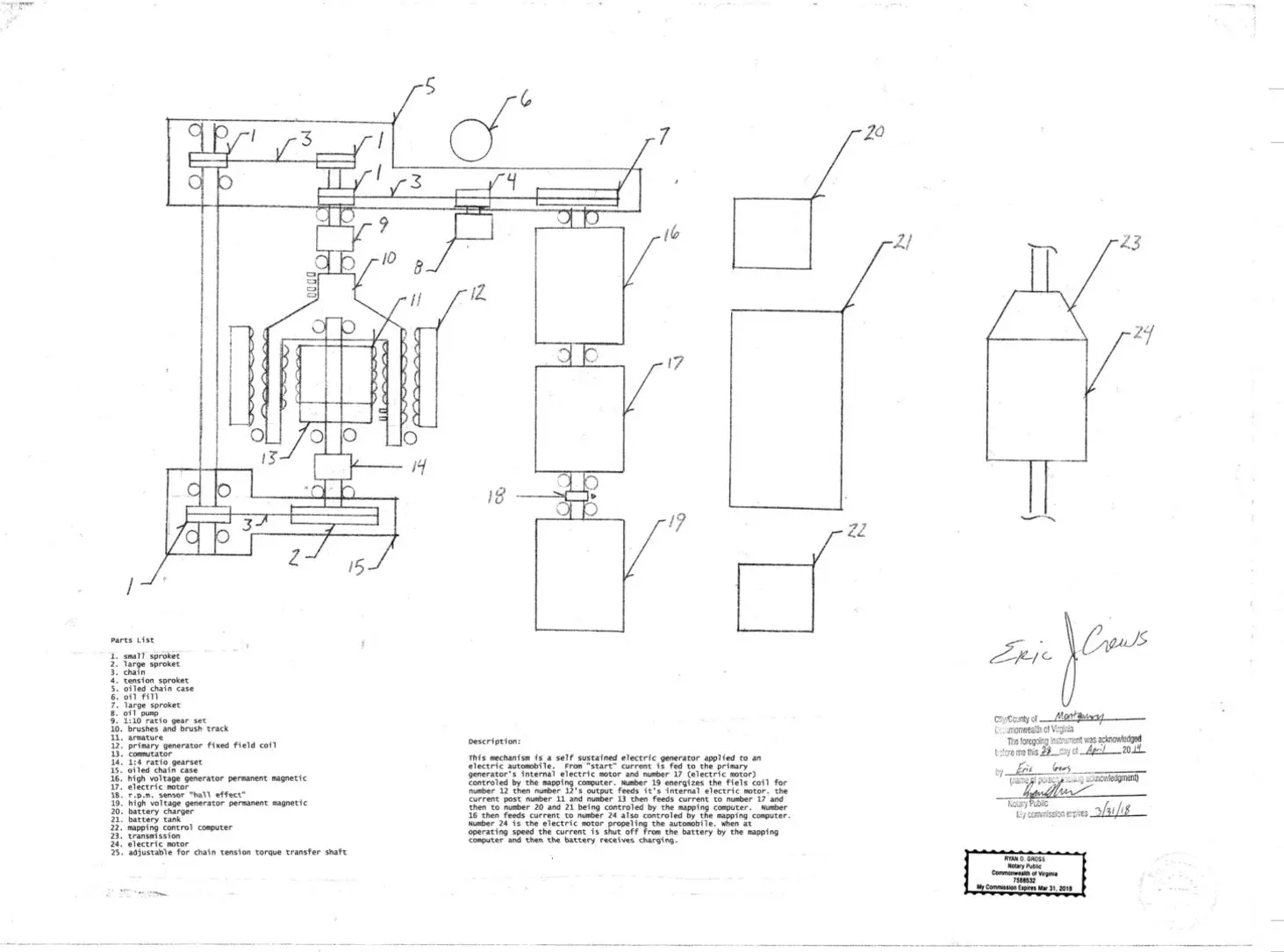

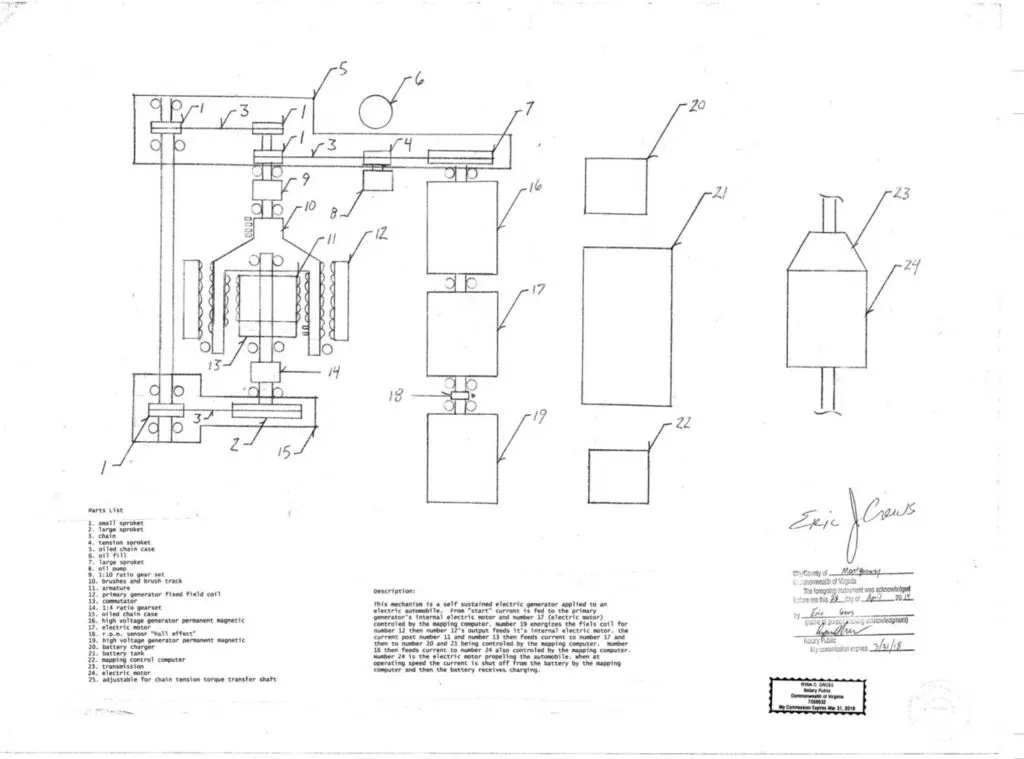

Parts List 1. small sprocket 2. large sprocket 3. chain 4. tension sprocket 5. oiled chain case 6. oil fill 7. large sprocket 8. oil pump 9. 1:10 ratio gear set and electromagnetic clutch within the gear set drive line. 10. brushes and brush track 11. armature 12. primary generator fixed field coil 13. commutator 14. 1:4 ratio gear set 15. oiled chain case 16. high voltage generator permanent magnetic 17. electric motor 18. r.p.m. sensor “hall effect” 19. high voltage generator permanent magnetic 20. battery charger 21. battery tank 22. mapping control computer 23. transmission 24. electric motor 25. adjustable for chain tension torque transfer shaft Description: This mechanism is a self sustained electric generator applied to an electric automobile. From “start” current is fed to the primary generator’s internal electric motor and number 17 (electric motor) controlled by the mapping computer. Number 19 energizes the field coil for number 12 then number 12’s output feeds it’s internal electric motor. the current post number 11 and number 13 then feeds current to number 17 and then to number 20 and 21 being controlled by the mapping computer. Number 16 then feeds current to number 24 also controlled by the mapping computer. Number 24 is the electric motor propelling the automobile. When at operating speed the current is shut off from the battery by the mapping computer and then the battery receives charging.
